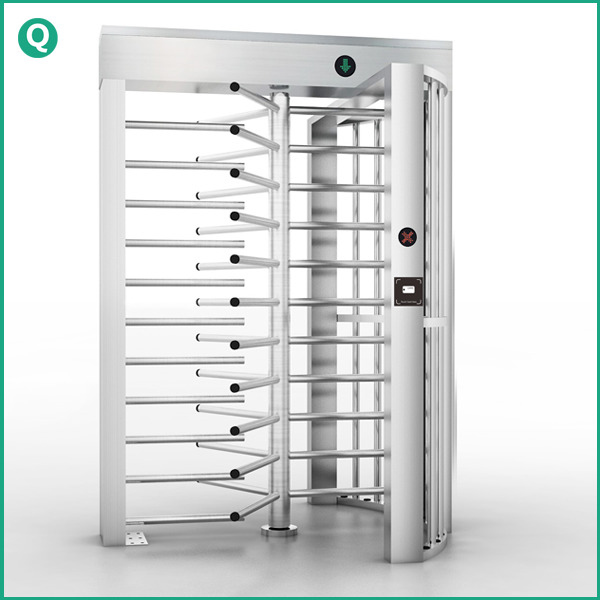

  • Name: Full Height Turnstile
  • Fully automatic Type: HQFHT1011 / HQFHT1011C
  • Semi-automatic Type: HQFHT2011 / HQFHT2011C

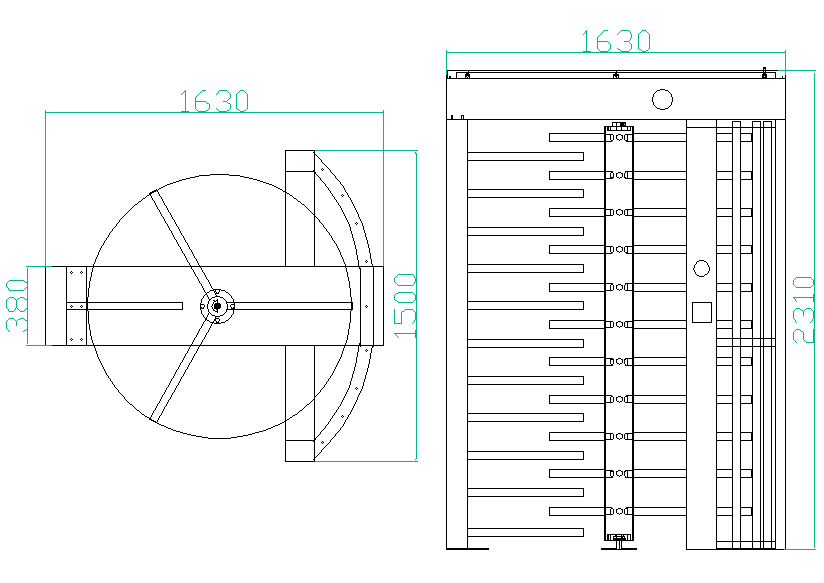

  • Size: 1650L*1500W*2310H MM
  • Product description: The full height turnstiles are designed for complete closure of passageway and they are suitable for both indoor and outdoor use. Order full height turnstile from the manufacturing QINY.

The full height turnstile HQFHT2011 is designed for complete closure of passageway provides a high secure solution for both indoor and outdoor use. The model offers a high secure solution for entrance points of prisons, factories, stations, parking lots and other sites with high requirements or design and comfort.


l QINY Full height turnstiles are designed for complete and secure closure of a passageway and used for control of access at locations with high security requirements, both indoors and outdoors.

l The full height turnstiles HQFHT1011 and HQFHT2011 are made of 304# stainless steel to ensure high degree of resistance to weather and vandalism.

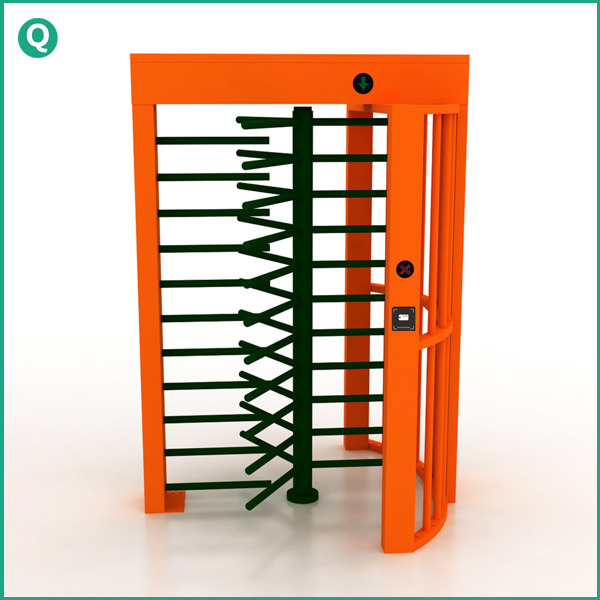

l Housing of HQFHT1011C and HQFHT2011C full height turnstiles are made of anticorrosive galvanized steel with powder coating; rotors are made of stainless or galvanized colored steel.

l For simplification and quality improvement of the assembling, the extra foundation frame can be used. By means of this frame, the turnstile can even be installed on an unstable ground.

l The full height turnstile is provided with bright built-in LED indicators to show if access is granted or denied.

l Anti-backup device to prevent reverse rotation once the rotor has turned more than 60°.

l "Fire Alarm" input to unblock the turnstile from fire alarm system or emergency button.

l When operating under an access control system, the turnstile can support level control modes.

l To ensure fast and convenient passage it is recommended to install one turnstile per 500 people working the same shift, and on the basis of maximum working load 30 persons/min.

l The full height turnstile can be easily integrated into most access control systems. The operating modes are set up independently for each passage direction.


Unit classification

Fully Automatic



AC220V±10%, 50Hz±10%

AC220V±10%, 50Hz±10%

Logic Voltage:




Motorized mechanism

Electromechanical mechanism


DC brushless motor





Throughput rate:

30 persons/min

30 persons/min


5 million cycles

5 million cycles

Input port:

Relay dry contact signal, level signal

Relay dry contact signal, DC5V-24V level signal

Passage directions operation model:

Single or bi-directional available

Single or bi-directional available

Temperature range:

from -15 °С to 60°С

from -15 °С to 60°С

Turnstile housing - galvanized steel with powder coating
Turnstile rotor - galvanized steel with powder coating

Blackish green


Turnstile housing - stainless steel
Turnstile rotor - stainless steel

Stainless steel

Stainless steel


Materials & Finish

Housing: alternative SUS 316 Stainless Steel and Custom Design;

Finish: alternative anti-fingerprint, galvanizing or painted surface;


Customize non-standard application according to the needs of users

Systems Integration:

Reader integration;

Access Control System Integration;

Visitor System Integration;

Camera system integration;

Remote control button;

Wireless remote control button.


QINY all turnstiles and speed gates can easily integrate with access control systems, these high quality entrance control products can provide a level of security to meet even the most exacting requirements. In case of an emergency the turnstile or speed gate can be unblocked enabling to free the passageway in case of emergency without use of any specific keys or tools. To form passageways of any required configurations and make an entrance design complete, QINY turnstiles and speed gates can be installed together with matching railings of different types.
