Speed Gates

  • motorized pedestrian gate
  • motorized pedestrian gate
  • motorized pedestrian gate
motorized pedestrian gatemotorized pedestrian gatemotorized pedestrian gate

motorized pedestrian gate

  • Name: Speed Gate
  • Mode: HQSG4012
  • Motor: Servo motor

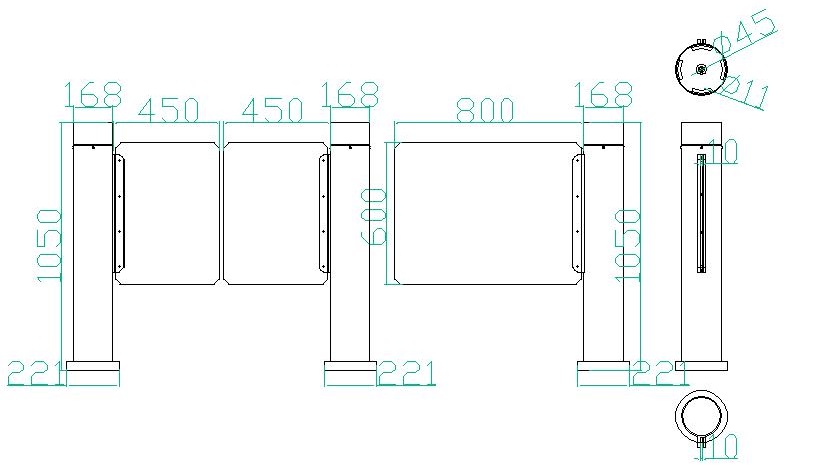

  • Size: Φ168 *H1050 MM / Φ141 *H1050 MM
  • Product description: Speed gates are designed in a elegant and modern style and provide an ideal contactless solution for access control at sites with high aesthetic and comfort requirements from turnstiles manufacturer Q

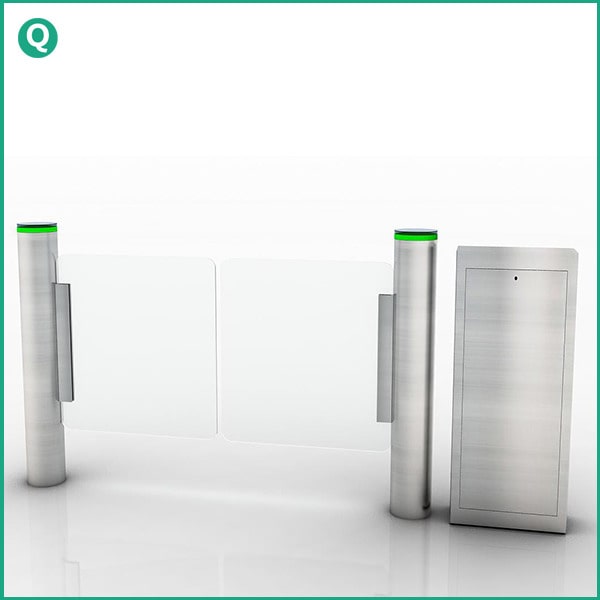

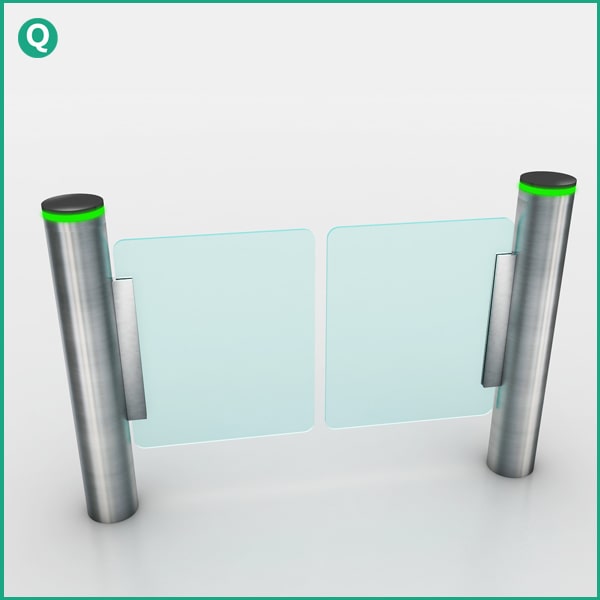

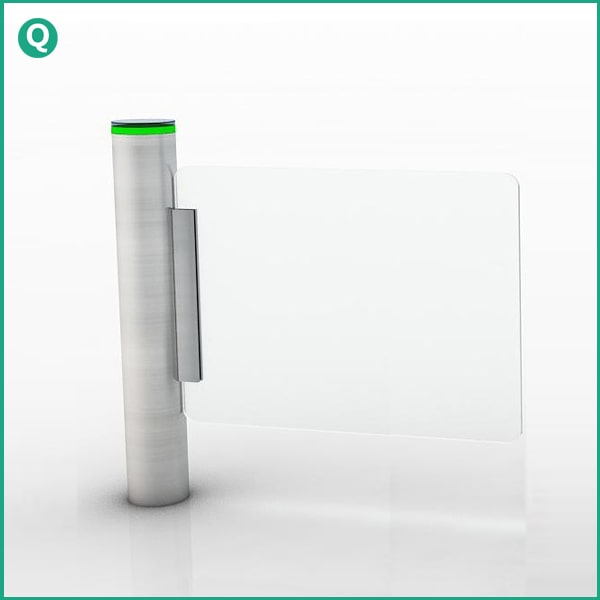

The HQSG4012 speed gates with swing panels are designed in a modern and elegant style and provide an ideal contactless solution for access control at sites with high aesthetic and comfort requirements.


l The detection system is equipped with servo motor, which guarantees passage security at high throughput rate.

l In emergency situations after receiving a signal from an access control system or an emergency button the swing panels are opened in a predetermined direction, in case of a power loss the swing panels are unlocked.

l The equipment can operate as an operating device as a part of access control system or as a standalone unit operated from the remote control panel.

l The extended version provides comfortable access for people in wheelchairs and people carrying bulky goods. Fail-safe operation ensures free passage in an emergency case.



AC (100–240) V, 50/60 Hz

Power consumption:





DC Servo motor


ARM /32 bits CPU

Throughput rate:

35-40   persons/min


10 million cycles

Input port:

Relay dry contact signal, level signal

Passage directions operation model:

Single or Bi-directional available

Temperature range:

from -15 °С to 60°С

Passage width:

300 mm ~ 1150mm optional

Top covers and Gate post – stainless steel.

304# Stainless steel

Swing panels – Organic glass



Materials & Finish:

Housing: alternative SUS 316 Stainless Steel and Custom Design;

Finish: alternative anti-fingerprint, galvanizing or painted surface;

Swing panels: alternative tempered glass, acrylic or polycarbonate or different color.

Passage Width:

There are several swing panel models, which can be chosen according to the passage width and to the operation peculiarities upon making an order;

Lane widths can vary to accommodate ADA compliance.


Alternative imported motor or direct drive motor;

Alternative extended more sensors;

Custom reader mounting bracket.


Customize non-standard application according to the needs of users;

Customize special alarm response modes.

Systems Integration:

Reader integration;

Access Control System Integration;

Visitor System Integration;

Camera system integration;

Remote control button;

Wireless remote control button.

QINY all turnstiles and speed gates can easily Integrate with access control systems, these high quality entrance control products can provide a level of security to meet even the most exacting requirements. In case of an emergency the turnstile or speed gate can be unblocked enabling to free the passageway in case of emergency without use of any specific keys or tools. To form passageways of any required configurations and make an entrance design complete, QINY turnstiles and speed gates can be installed together with matching railings of different types.
