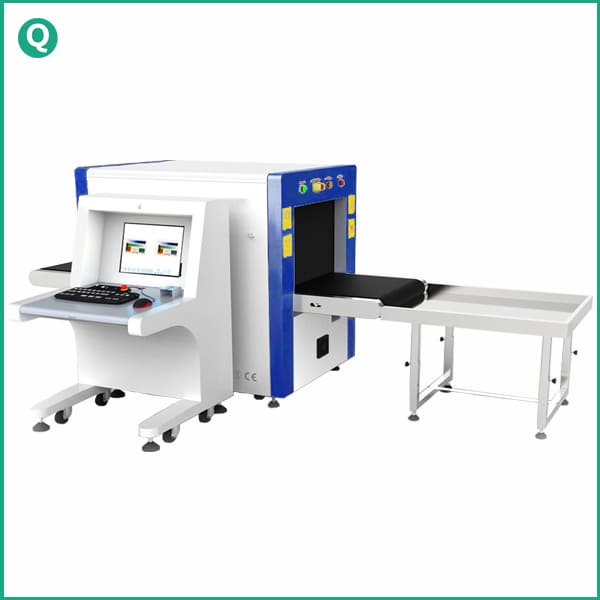

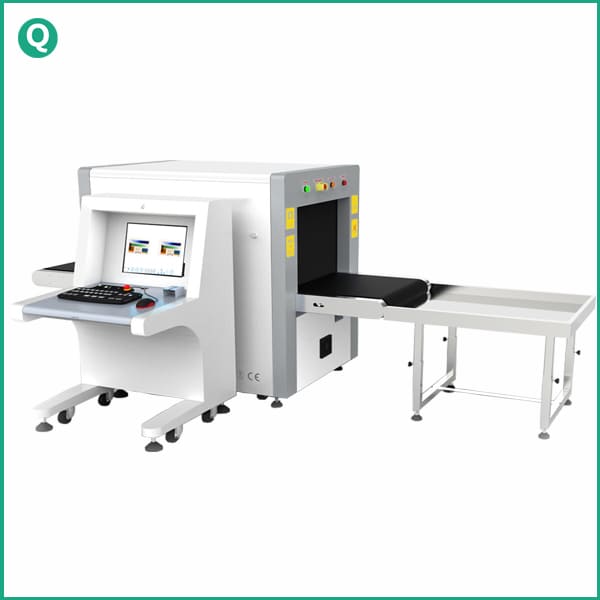

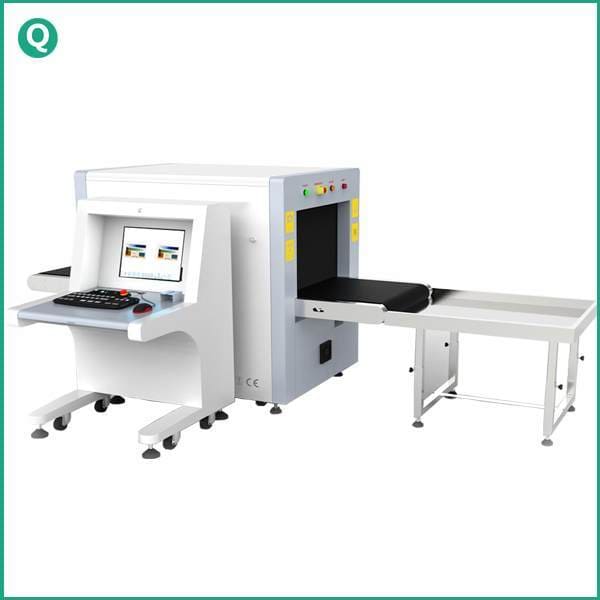

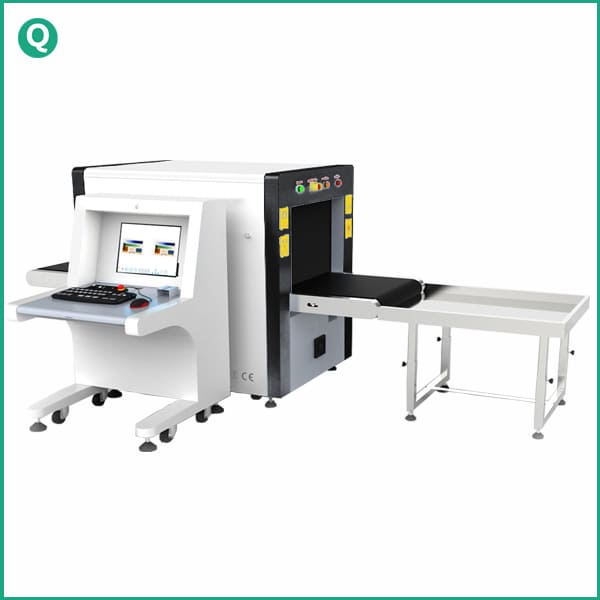

X-ray Baggage Scanner HQ6040C
- Name: X-ray Baggage Scanner
- Mode: HQ6040C
- Tunnel Size(cm): 60W*40H
- Energy type: Dual energy
- Product description: XQINY are the best company of X-Ray Baggage Inspection System and X-ray Baggage Scanner in all over China. X-ray baggage scanner Machine make by the advance technology for security purposes.
HQ6040C is an ideal solution for the inspection of handbags and small baggage within the limited space & unequipped inspection area. This lightweight system can be easily related without using of special equipment.
It fits through doorways and elevators for fast relocation and installation.
Highlights
l Compact and light-weight design
l Widely use sable for small parcels.
l Easy to operate and user friendly interface
l With digital signal and processor
l Continuous working 10000 hours above
l Energy saving design
l High quality images
|
Specifitions |
||
|
Tunnel Size(cm): |
|
60W*40H cm |
|
Conveyor Speed (m/s): |
|
0.22 m/s |
|
Conveyor Max Load (kgs): |
|
180kgs |
|
X-ray Volume: |
|
< 1.5µGNy |
|
Resolution: |
|
∅0.0787mm |
|
X-ray Penetration: |
|
≥10mm-thick steel plates |
|
Effect on Film: |
|
safe for ISO1600 film |
|
X-ray volume for Single Inspection: |
|
≤1.22μGy/h |
|
Leakage Volume: |
|
< 0.09µGy/h |
|
Unit Size (mm) |
|
Product size depends on goods |
|
|
|
|
|
X-ray Generator |
||
|
X-ray Direction: |
|
from the bottom |
|
Tube Current: |
|
0.4~1.2mA (adjustable) |
|
Tube Voltage: |
|
100 ~ 140kV (adjustable) |
|
Beam Divergence Angle: |
|
60° |
|
Generator Cool: |
|
Seal oil cooling / 100% |
|
|
|
|
|
Image Processing System |
||
|
X-ray Generator: |
|
L-shaped array detector, 24bit |
|
Display: |
|
High resolution LCD display |
|
Image Identification: |
|
Variable multi-energy, color inversion (black and white inversion), super clear image enhancement, image penetration enhancement, item aided recognition |
|
Image Processing: |
|
24-bit real-time processing |
|
Image Display: |
|
Black and white, false color |
|
Image Storage |
|
Real-time image storage (>10000 images) |
|
Operation System: |
|
Windows |
|
|
|
|
|
Operation Environment |
||
|
Operating Temperature |
|
0°C ~45°C /20%~95% (non-condensable gas) |
|
Storage temperature: |
|
-20°C ~60°C /20%~95% (non-condensable gas) |
|
Voltage |
|
220VAC (±10%) 50±3Hz |
|
Power loss |
|
1.0KW (max) |
|
Noise |
|
< 55dB (A) |
|
Operator station |
|
3-strand cable between operator station and host |
