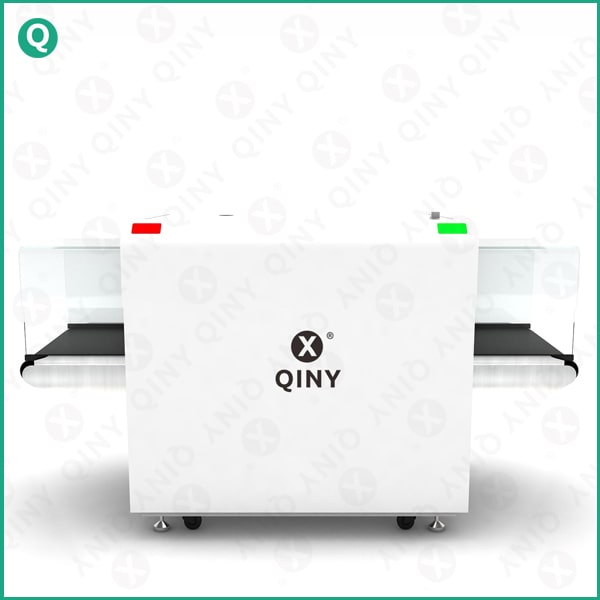

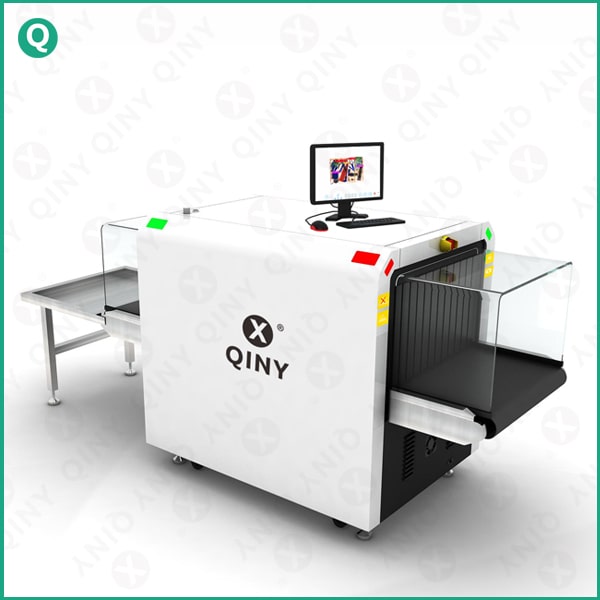

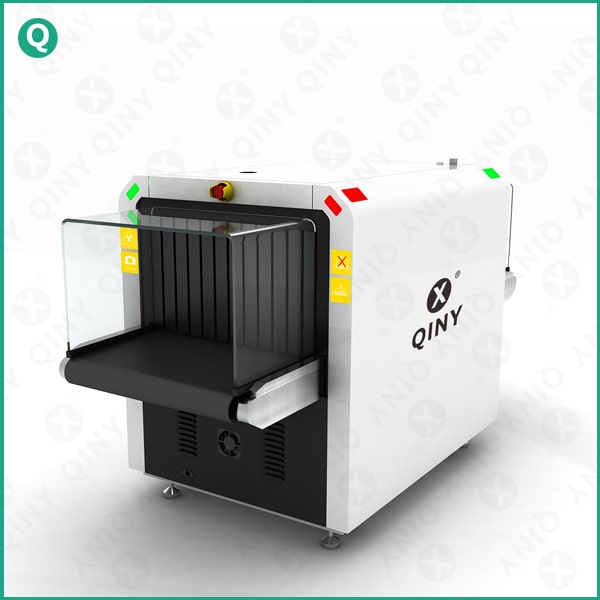

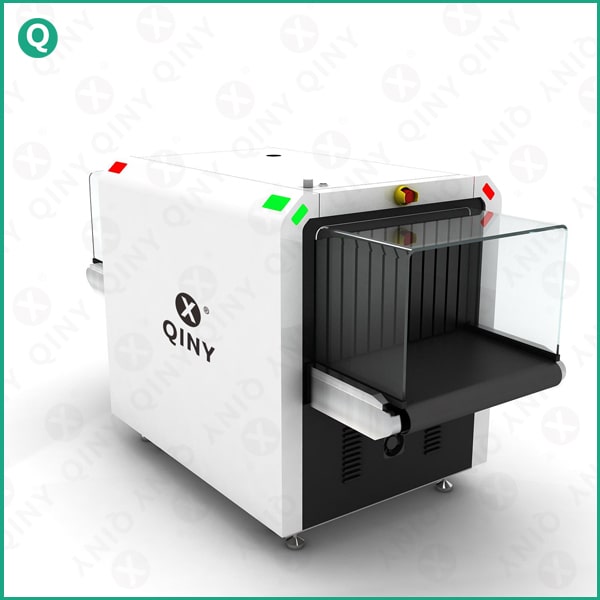

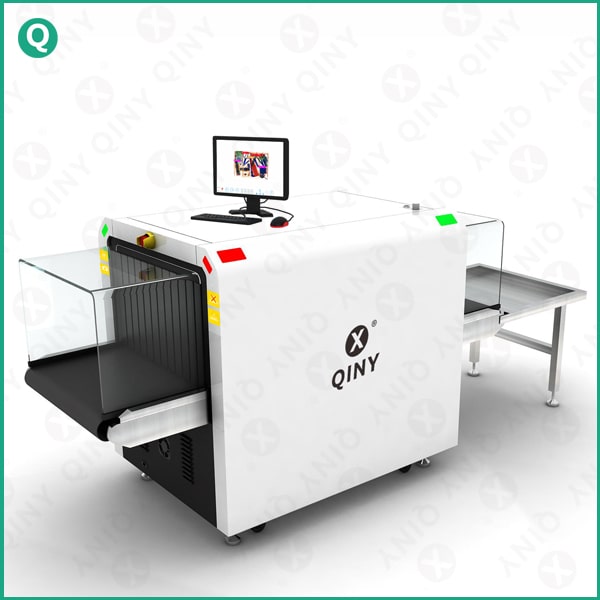

X-Ray Baggage Scanner
AI-Based X-ray Scanner
- Name: X-ray Baggage Scanner
- Mode: HQXS6040-AI
- Tunnel Size(cm): 60W*40H
- Energy Type: Dual Energy
- Product description: XQINY are the best company of X-Ray Baggage Inspection System and X-ray Baggage Scanner in all over China. X-ray baggage scanner Machine make by the advance technology for security purposes.

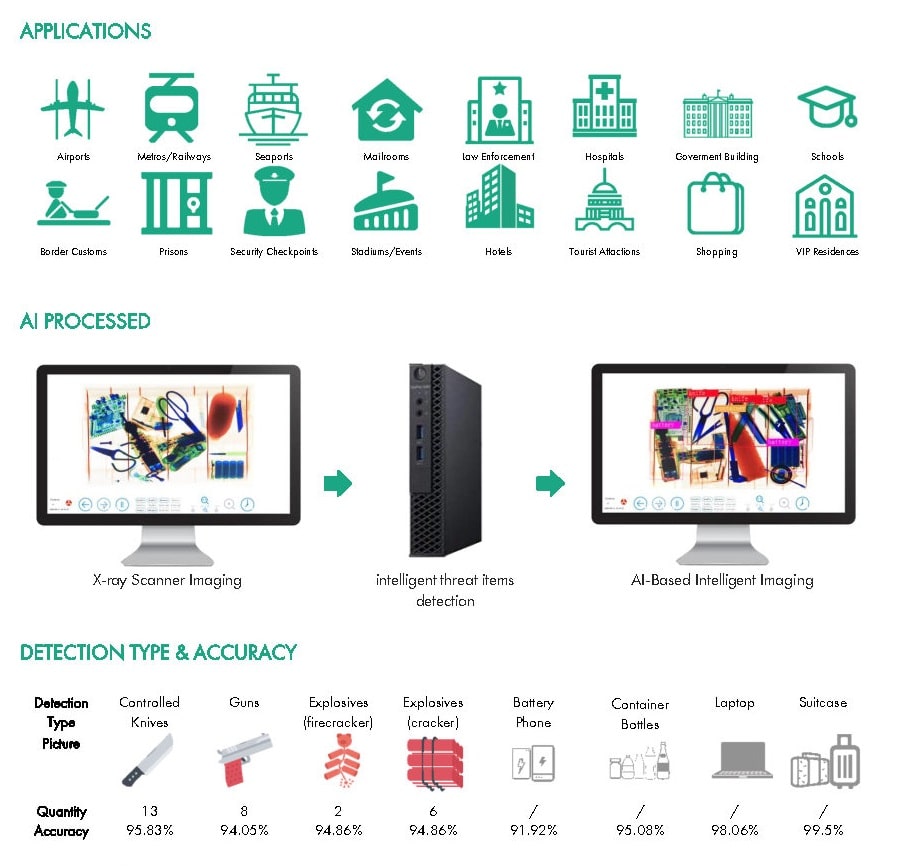

The HQXS6040-AI AI Automated X-Ray Baggage Scanner utilizes unique Artificial Intelligence (AI) software to assist in the Inspection process and reduce the human factor while dramatically improving the overall screening experience, it works for the detection of weapons, explosives, primers and dangerous objects, which represent a safety hazard by identification of substances with effective atomic number. This is a piece of very effective and reliable security equipment.
The HQXS6040-AI AI Automated X-Ray Baggage Scanner perfectly transforms operator into observer, the user places their bag on the conveyor, if a threat is detected, the system will alarm and picked up the possible threats in the monitor. The screening operator is alerted on their control tablet that the scanner has identified a possible threat, the operator will then investigate the potential threat.
HQXS6040-AI scanner is ideal for use in places where people congregate including malls , hotels, shopping centers, hospitals, transportation hubs like airports and terminals, and places where contraband are likely to be smuggled into like mail rooms, prisons, and museums.
Highlights
l Compact and light-weight design
l Widely use sable for small parcels.
l Easy to operate and user friendly interface
l With digital signal and processor
l Continuous working 10000 hours above
l Energy saving design
l High quality images
|
Specifitions |
||
|
Tunnel Size(cm): |
|
60W*40H cm |
|
Conveyor Speed (m/s): |
|
0.22 m/s |
|
Conveyor Max Load (kgs): |
|
150kgs |
|
X-ray Volume: |
|
< 1.5µGNy |
|
Resolution: |
|
∅0.0787mm |
|
X-ray Penetration: |
|
34mm-thick steel plates |
|
Effect on Film: |
|
safe for ISO1600 film |
|
X-ray volume for Single Inspection: |
|
≤1.22μGy/h |
|
Leakage Volume: |
|
< 0.09µGy/h |
|
Unit Size (mm) |
|
Product size depends on goods |
|
|
|
|
|
X-ray Generator |
||
|
X-ray Direction: |
|
from the bottom |
|
Tube Current: |
|
0.5~1.2mA (adjustable) |
|
Tube Voltage: |
|
1140kV |
|
Beam Divergence Angle: |
|
60° |
|
Generator Cool: |
|
Seal oil cooling / 100% |
|
|
|
|
|
Image Processing System |
||
|
X-ray Generator: |
|
L-shaped array detector, 24bit |
|
Display: |
|
High resolution LCD display |
|
Image Identification: |
|
Variable multi-energy, color inversion (black and white inversion), super clear image enhancement, image penetration enhancement, item aided recognition |
|
Image Processing: |
|
24-bit real-time processing |
|
Image Display: |
|
Black and white, false color |
|
Image Storage |
|
Real-time image storage (>10000 images) |
|
Operation System: |
|
Windows |
|
|
|
|
|
Operation Environment |
||
|
Operating Temperature |
|
0°C ~45°C /20%~95% (non-condensable gas) |
|
Storage temperature: |
|
-20°C ~60°C /20%~95% (non-condensable gas) |
|
Voltage |
|
220VAC (±10%) 50±3Hz |
|
Power loss |
|
1.0KW (max) |
|
Noise |
|
< 55dB (A) |
|
Operator station |
|
3-strand cable between operator station and host |
